EXTECH INSTRUMENTS CORPORATION
285 Bear Hill Road, Waltham, MA 02451-1064
Phone: 781-890-7440 • FAX 781-890-7864 11/13/06 - R1
Features:
• Built in laser pointer identifies surface target area
• Adjustable emissivity corrects for surface finish
• Switchable °F/°C temperature units
• PC interface and optional software saves data into a PC file
• Relative function to view temperature change
• Offset function to improve accuracy
• Data Hold and Min/Max readings
• Type K thermocouple input for wide air,
liquid or surface temperature measurements
• Complete with 9V battery (Type K thermocouple
probe sold separately)

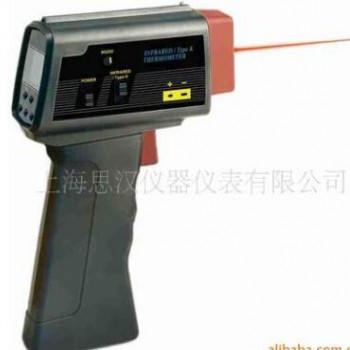

IR Thermometer with Type K input
Non-Contact InfraRed Thermometer with Laser Pointer plus Type K thermometer
Specifications InfraRed Type K
Display 9999 count LCD
Range -4 to 752°F -148.0 to 2372.0°F
(-20 to 400°C) (-100.0 to 1300.0°C)
Basic Accuracy ±3% of reading or 6°F (3°C) ±(1% reading + 2°F/1°C)
Max Resolution 0.1°C/°F 0.1°C/°F
Emissivity 0.20 to 1.00
Filed of view (Distance to Target) 6:1
Dimensions 7.7 x 4.7 x 2.3" (195 x 120 x 58mm)
Weight 0.6 lbs./265g
Ordering Information
42525A ....................IR Thermometer with Type K input
42525A-NIST ..........IR Thermometer with Type K input with NIST Certificate
872501......................Type K Bead Wire Probe
871515......................Stainless Steel General Purpose Probe
CA899 ......................Vinyl Carrying Case with Shoulder Strap
407001......................Software and Cable
Product DATASHEET
ISO 9001:2000 CERTIFIED
“Make mine an Extech!™”
Copyright © 2004 Extech Instruments Corporation. All rights reserved including the right of reproduction in whole or in part in any form.
